304 Stainless steel single passage automatic LED light direction indicator full body turnstile door
Basic Description
Full Body Turnstile Door can be used in wharf, metro station, tourist attraction, entrance and exit management channel of factory time attendance, access control, consumption management for enterprise or business buildings recount channel management of exhibition, swimming pool, special channel management system etc.
It can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint and Biometric device).
It is very safety, to meet fire-control passage requirements, the turnstile gate will open(or closed) automatically when the power off.

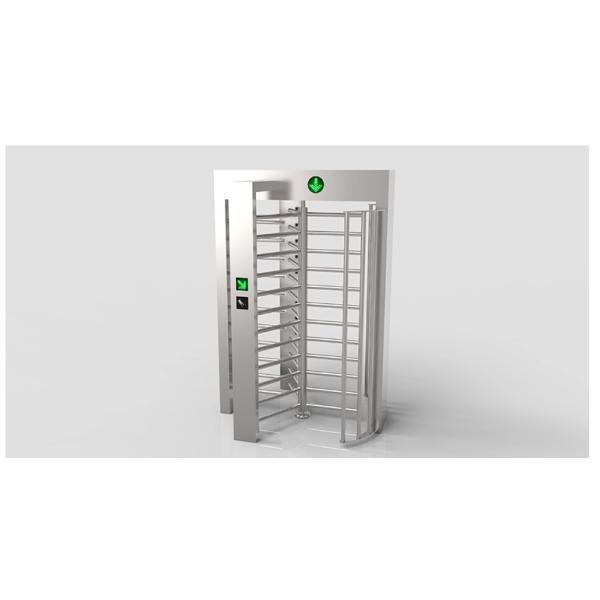

Product Photo
Product dimension
Functions & Features
1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.
3. Self-test function, when power on, system restoration automatically.
4. Dual-bearing device, keeping the gate in balance when there is external force.
5. Single directional or Bi-directional is selectable.
6. LED indicator.
7. Auto replacement function, reposition after person pass by.
8. Manual button or remote control , bi-directional passage.
Control & Interfaces optionals
1. Card readers
2. Metal detection
3. Electronic/LCD counters
4. Fail-open or fail-secure locking
5. Push-button and wireless remotes
6. Manual key override both directions
7. Indicator lights
Technical specification
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Power consumption | 40W |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Max flow rate | 25 to 30 person per minute |
| Arm length | 550mm (default) |
| Lane width | 600mm (default) |
| Working temperature | -20°C~60°C |
| Current | 3A |
| Control circuit | DC24 |
| Working humidity | 0~95%RH |
| Arm Diameter | 38mm |
Workshop photo
Packing photo

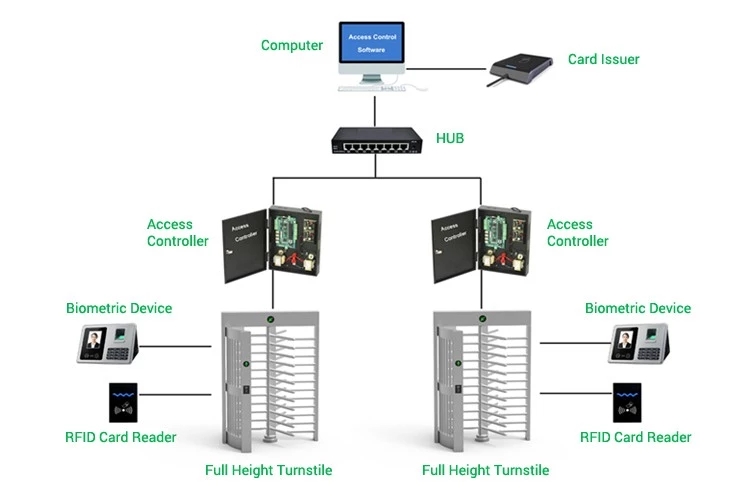

How full height turnstile access control system works

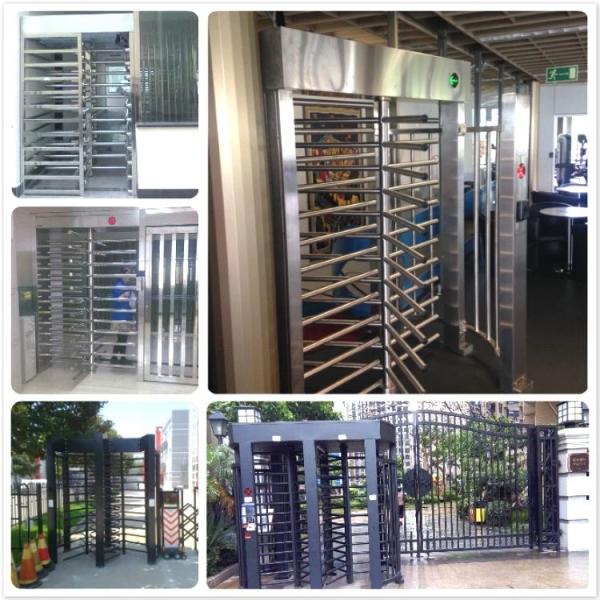

Cases reference
