Waist high double wings retractable Flap Barrier Gate , half height turnstile with glass arm
Brief description:
The intelligent flap barrier is one of the serial products of intelligent passage management series from Our Company. It possesses superiority incomparable with the traditional management mode. It is the scientific crystallization of the highly development of social civilization and it opens a new era for the scientific management.
The outline of the product is formed after pressing the stainless steel plate. The shape is featured as a pleasing appearance, a good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the product with read/write facilities. A special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting of passengers. The product is featured as stable in performance, safe and reliable, and can be used widely in the places where passenger flow is great and monitoring is needed such as stations, harbors and guest house.
Features and functions:
1. working method can be set by the buttons on the main panel
2. One way or two way control
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4.Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7.uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
Access control system:
Technical specification:
| Housing material | 304 stainless steel |
| Dimensions | L1000 x W300 x H980mm |
| Maximum Passage Width | 600mm |
| Power Supply | AC220V±10%,50HZ |
| Motor Voltage | DC24V |
| Flap opening/closing time | 0.2s |
| MCBF | 5 million cycles |
| Transit speed | 30 persons/min |
| Operating environment | Indoor/outdoor (Shelter) |
| Operating temperature | -20°C ~ +60°C |
| Operating humidity | ≤95% no condensation |

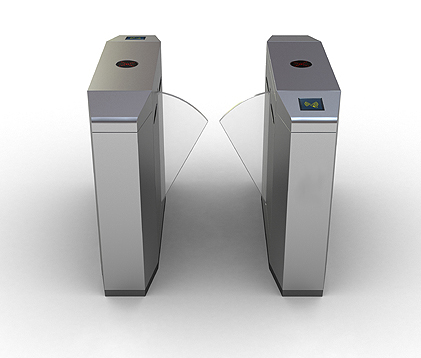

Product photo:
