Fingerprint recognition security 304 stainless steel half height sliding gate access control turnstiles
Introduction of half height sliding gate:
1. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
2. Direction display to guide passenger which direction is to go.
3. Stable running with little noise.
Applications of half height sliding gate:
Full height sliding gate is suitable for indoor or outdoor with tent. They are optimized solution for airport, railway station, metro station, bus station, stadium, supermarket, check point, book stores, sports center, factory, colleges, commercial building, library, stadium, hotel, bank and etc.
Features of half height sliding gate:
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact.
9. Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching.
10. Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates.
11. Multiple modes of function: by setting the switch can be set to the gates normally open , normally closed two modes of operation.
12. Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing.
13. Power off the pole, the power from the bar features: gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements.
14. Anti-collision function: no credit card pedestrian push the brake lever , lock gates.
Specifications of half height sliding gate:
| Item | Specification |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor voltage | DC 24V (brush motor) |
| Max flow rate | 25 to 30 person per minute |
| Flap opening / closing time | 1s |
| Reset time when power on | 3s |
| Working temperature | -20°C~60°C |

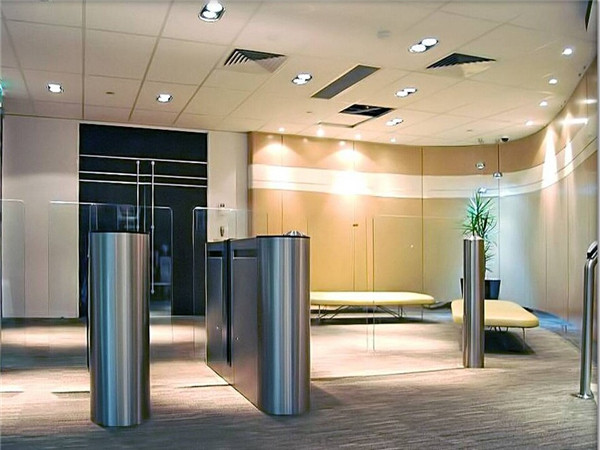

Case of full height sliding gate:
